CODE: BIM
BIM 800 Base & Top

Waterproofing Skirting For Outside Installation BIM 800 ASN - BASE & TOP

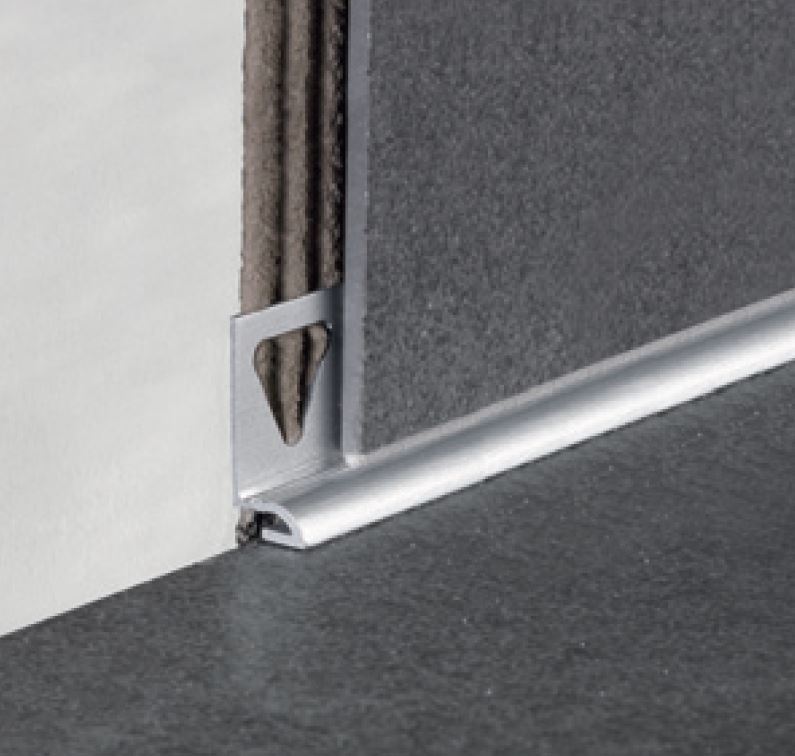

BIM Skirting is a technical profile for outside floors able to cover and join the waterproofing overlap.  It is a two-part skirting consisting of a silver anodised aluminium base with a decorative top section.

The base section fixes directly to the wall (with mechanical or adhesive fixing) offering durability and resistance to damp.  The top section clips into the base, covering the base.  Nice decorative effect created with two colours silver and micaceous grey.


The base, available only in silver finish is conceived to match both the aluminium and micaceous TOPS.  Available junctions and end plugs in synthetic resin Silver colour.

Skirting BIM 800 ASN - BASE
H = cm Finish Profile Code
5cm Aluminium Silver BIM 800 ASN

Skirting BI 800* TOP in different finishes
H= cm Finish Profile Code
3cm Aluminium Silver BI 800 ASN
3cm Aluminium Micaceous Grey BI 800 A 50

Material:  Extruded anodise aluminium
Colour: Silver
Length: 2m
Base Height: 5cm
Top Height:  3cm
Complete skirting height:  8cm


Dimension: Base 200cm L x 5cm H Top 200cm L x 3cm H
Our Price :
$NZ 0.00
($NZ 0.00 ex GST)


Quantity
