Plano BF
CODE:
PlanoBF

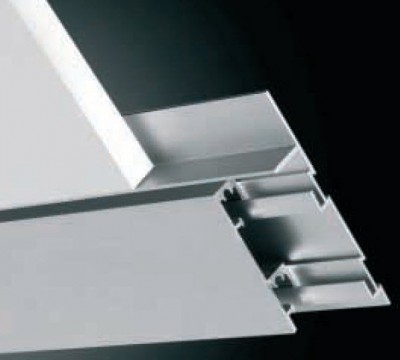

Design Skirting Seamless Effect
The PlanoBF Design range has been developed to be installed as part of the wall, giving a fully coordinated finish to both the wall and floor and becoming an integral element of the design. The BASE of the system is built into the wall structure, being fitted with the plaster and plasterboard (drywall). The decorative finishing profile then fixes to the BASE, creating a seamless effect.  The interlocking finishing profile can be adjusted up to 5mm in height to allow for slight undulation in the floor:

BASE Finish:  Silver Anodised Aluminium
TOP Finishes:  Silver Anodised Aluminium :  Aluminium Powder Coated - Matt White :  Wooden Oak gloss painted or natural, can be treated with a suitable coated or protective oil to achieve the required colour.









Plano Base BF 600 ANS Silver Anodised Aluminium
H=cm Finish Product Code
6cm Silver Anodised Aluminium BF 600 ASN

Material:  Extruded anodised aluminium
Colour:  Silver
Length:  2.7 metres
BASE Height:  6cm

Plano TOP BF 550 ASN Silver Anodised Aluminium
H=cm Finish Product Code
5.5cm Silver Anodised Aluminium BF 550 ASN

Material:  Extruded anodised aluminium
Colour:  Silver
Length:  2.7 metres
TOP Height:  5.5cm

Plano TOP BF 550 AM 11 Aluminium Powder Coated Matt White
H=cm Finish Product Code
5.5cm Powder Coated Matt White BF 550 ASN

Material:  Extruded anodised aluminium
Colour:  Powder Coated Matt White
Length:  2.7 metres
TOP Height:  5.5cm


Plano TOP BF 550 RO* Wooden Oak
H=cm Finish Product Code
5.5cm Solid Wood - RON Natural Oak BF 550 RON
5.5CM Solid Wood - RO Gloss Painted Oak BF 550 RO

Material: Solid Wood
Colour:  RON Natural Oak
Colour:  RO Gloss painted Oak
Length:  2.7 metres
TOP Height:  5.5cm


The finishing profile is available in three finishes to coordinate with any interior design, a powder coated finish to harmonize with the wall colour, anodised aluminium for a modern look or in an oak finish to complement floors and furniture.

The silver anodised aluminium BASE is installed at the same time as the wall finish to sit flush with the wall acting as the wall base and allowing the plasterworks to be neatly finished.

The TOP finishing profile is fixed once the floor and wall coverings have been fitted and allows for minor differences in floor height +/-2.5mm.

Ideal to finish spaces with a modern minimalist design.








Dimension: BASE 270 xcm L x 6cm H TOP 200cm x 5.5cm H
